Material flow simulation

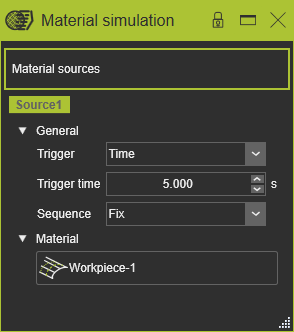

The Material simulation dashboard is used to specify the material flow simulation conditions.

For each source the following attributes are defined and can be modified here.

Attribute	Description	Remark
Trigger	The trigger to appear the material. The trigger can be: Time Port signal	The material appears on the rising edge of the port signal.
Trigger time	The trigger time during simulation for the material to appear.	Only valid when time trigger has been set.
Sequence	The sequence in which the material appears.	Fixed.
	The material selector to assign a workpiece from the layout to the source.
