Automatic link path generation
The automatic link path generation command executes a function that is running some algorithms to improve the motion between two operations. Its primary goal is to generate a collision free motion path.
 |  | |

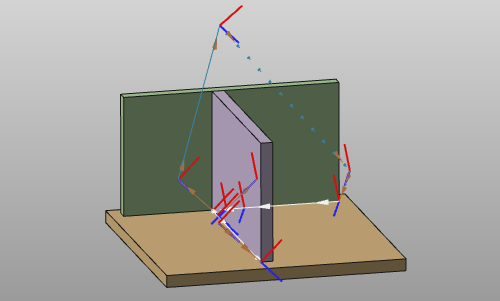

| Before | After |
In the tech tab Operation linking of the Active program dashboard, the parameters of the operation link path can be set.
Changes that are made here to the attributes require a regeneration of the link path by executing the command (again).
In the Toolpath monitor dashboard the operation link is displayed. The status of the automatic generation (or optimization) is indicated. And when the optimization adds new path positions to the motion, these positions are listed with the process type link point property.
When the command is executed, a panel appears to indicate the progress of the path generation process.
Edit
On the flow chart object a pie menu can be opened to execute some support functions for the operation link.
