Regshape Editing Workflow

Holes, Slots, Rectangles, Hexagons or Keyholes

Each regshape has specific attributes that can be changed in the Attribute Panel. To better understand the attributes, read

Regshape attributes panel

.

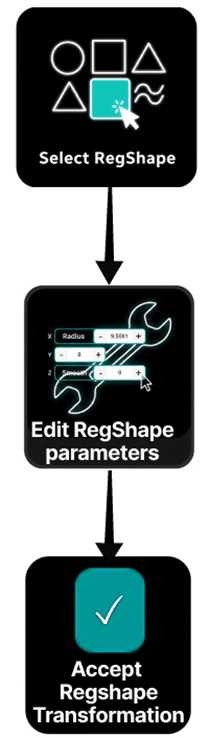

Workflow Steps

🎯 Operator Insights

• Regshapes are recognized automatically — making editing safer and preventing incomplete modifications.
• All regshape attributes update synchronously between the NC Editor and 3D Viewer.
• When TCP is selected as the reference, it is placed at the center of the regshape, and its XY plane aligns with the regshape’s own plane — even if the approach point lies on a different XY plane orientation.
• Press Accept after every transformation to finalize changes.
