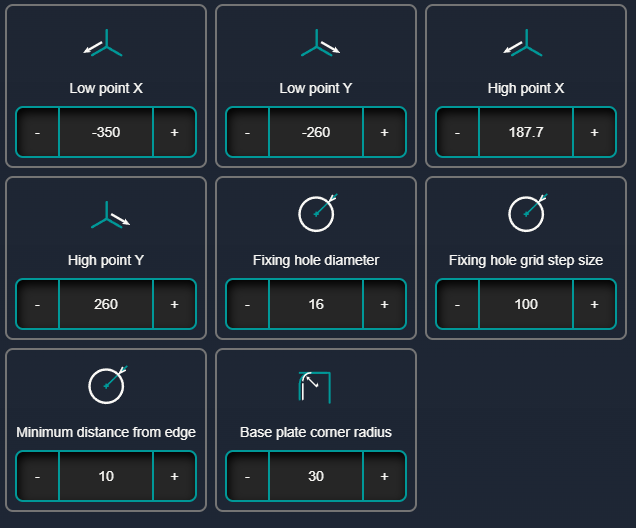

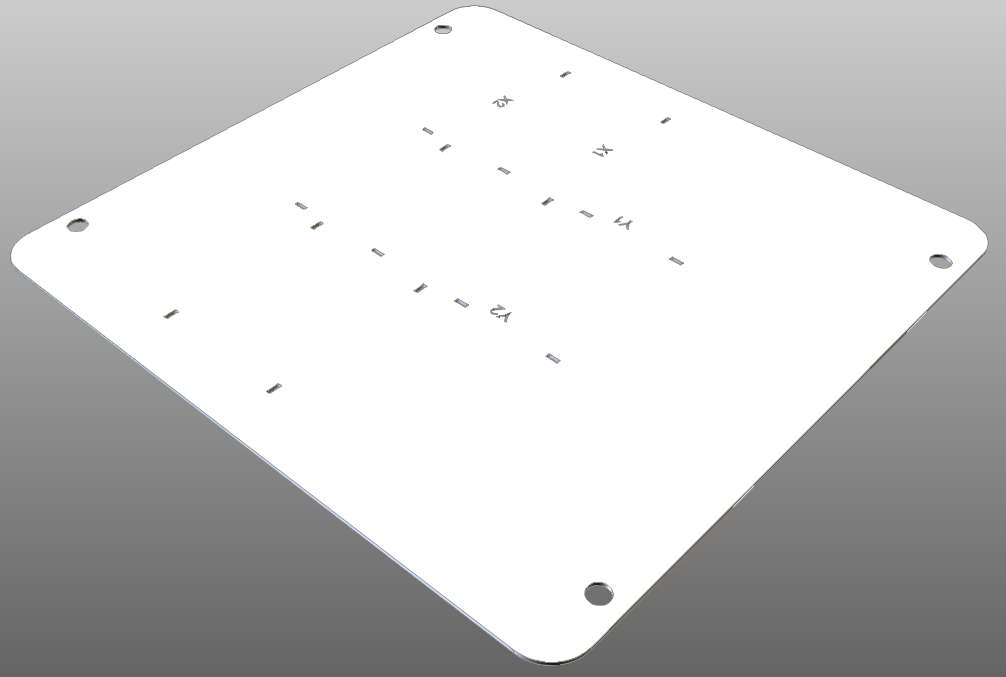

Base plates are the foundation plate of the fixture and they contain individual parameters that can be modified by the user.

Low point XY: Modifies the XY coordinates for the lower right corner of the base plate, this can resize the base plate.

High point XY: Modifies the XY coordinates for the higher left corner of the base plate, this can resize the base plate.

Fixing hole diameter: Changes the size of the fixing holes to match the table and fittings.

Fixing holes grid step size: The step that use for the separation of the holes in the base plate.

Minimum distance from edge: The min safe distance holes should have before they, decrease their separation by an extra step.

Base plate corner radius: The safety radius of the base plate corners.
